LatVolt BESS 5/20

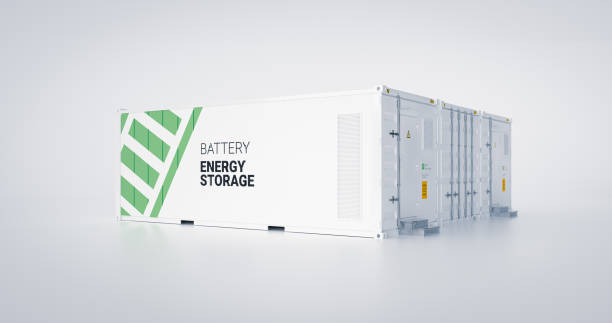

Introducing the LatVolt 5MWh Battery Energy Storage System (BESS) – Compact, Powerful, Reliable

Revolutionize your energy management with the LatVolt 5MWh Battery Energy Storage System, housed in a robust 20-foot enclosure. Designed for versatility and efficiency, the LatVolt offers unparalleled energy storage solutions for a variety of applications, from grid stabilization to renewable energy integration and backup power. Our cutting-edge technology ensures seamless energy storage and delivery, enhancing the reliability and sustainability of your energy infrastructure.

Key Benefits:

  • High Capacity: Store up to 5MWh of energy, ensuring you have power when you need it most.
  • Compact Design: The 20-foot enclosure allows for easy transportation and installation in a variety of locations.
  • Reliability: Advanced battery management system (BMS) ensures optimal performance and safety.
  • Flexibility: Ideal for grid support, renewable integration, peak shaving, and emergency backup.
  • Sustainability: Supports renewable energy sources, reducing reliance on fossil fuels and lowering carbon footprint.

PowerVault – Empowering the Future of Energy

Specifications:

General Specifications:

  • Energy Capacity: 5 MWh
  • Enclosure Size: 20-foot ISO container
  • Battery Type: Lithium-ion (Li-ion) or customer-specified technology options
  • Cycle Life: 4000+ cycles at 80% depth of discharge (DoD)

Electrical Specifications:

  • Rated Power Output: Up to 2 MW (discharge rate dependent)
  • AC Voltage Range: 400V – 480V (customizable to project requirements)
  • Frequency: 50/60 Hz
  • Round-Trip Efficiency: ≥ 90%
  • Power Conversion System (PCS): Integrated bidirectional inverter
  • Response Time: Millisecond response for fast frequency regulation

Environmental Specifications:

  • Operating Temperature Range: -20°C to +50°C (-4°F to +122°F)
  • Cooling System: Integrated HVAC system for temperature control
  • Enclosure Rating: IP54 or higher (weatherproof and dust-resistant)
  • Fire Suppression: Advanced fire suppression system included

Safety and Compliance:

  • Certifications: UL 9540, IEC 62619, IEC 62933, CE, UN 38.3, EU Battery Regulation (2023/1542)
  • Safety Features: Overcharge, over-discharge, over-temperature, and short-circuit protection
  • EU grid connection compliance: EN 50549 / national standards
  • Monitoring and Control: Remote monitoring and control via secure web interface

Additional Features:

  • Modular Design: Expandable to meet growing energy needs
  • Remote Monitoring: Real-time data access and system diagnostics
  • Connectivity: IEC 61850 / Modbus
  • Warranty: Up to 10-year performance warranty

Applications:

  • Grid Stabilization: Frequency regulation, voltage support, and peak shaving
  • Renewable Energy Integration: Solar and wind energy storage, smoothing output, and firming capacity
  • Backup Power: Reliable power supply for critical infrastructure and commercial facilities
  • Microgrids: Support for islanded and grid-connected microgrids
  • Electric Vehicle Charging: Enhances EV charging infrastructure with fast-charging capabilities
